RTCD Series
RTCD-50 Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell ＆ Tube Finned Tube Bundle
Product Groups
Shell & Tube Finned Tube Bundle
Cooling Medium
Water
Application
Industrial
Technology
Copper tube/ Aluminum Fin

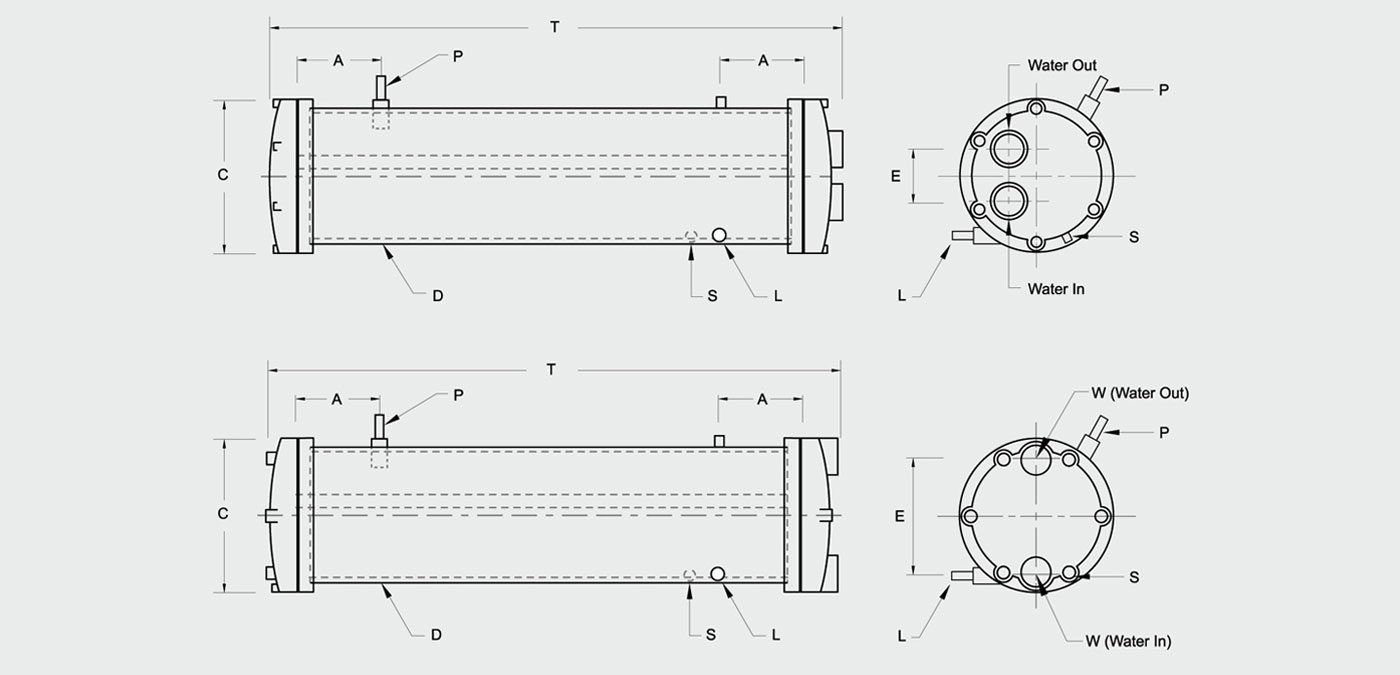

Dimensions
| Model | D | T1 | T | A | C | E | S | P | L | W |
|---|---|---|---|---|---|---|---|---|---|---|
| PT | PT | |||||||||
| RTCD-50 | 267 | 1820 | 1950 | 150 | 295 | 180 | 3/8 | 1-5/8 | 1-1/8 | 2-1/2” |
Technical Data
| Model | Flow T |
Cooling Kcal/h |
|---|---|---|
| RTCD-50 | 50 | 151400 |
Features
- Embossed copper tube
- Refrigerant in shell, water in tubes
- Moderate heat removal
- Turbulence design
- Two pathways option
- Short lead time
- Good for freshwater (Seawater for option)
Product options and tailored service
- Connections (PT/NPT/BSPP Port size and types)
- Tubes for seawater
Materials
- Tubes: Copper
- Shell Core: Carbon steel
